A head-up display (HUD) is an in-vehicle system that projects selected driving information into the driver's forward field of view. Instead of requiring the driver to repeatedly look down at the instrument cluster, a HUD can display speed, navigation guidance, safety alerts and energy information on the windscreen or a transparent display panel.
For passenger buses, electric coaches, heavy-duty trucks and other new energy vehicles, a HUD can support a more intelligent and driver-focused cockpit. When designed correctly, it helps drivers access important information quickly while maintaining greater awareness of the road environment.
A head-up display, commonly called a HUD, is a visual interface that presents important vehicle information in front of the driver. The information may appear to float above the dashboard or ahead of the windscreen.
The concept was originally developed for aviation, where pilots needed to monitor flight data while keeping their attention focused outside the cockpit. Vehicle manufacturers later adapted the technology for cars, and it is now becoming increasingly relevant for commercial vehicles, including buses, coaches, logistics trucks and electric heavy-duty vehicles.
A modern automotive HUD can display information such as:
- Current vehicle speed
- Speed-limit recognition information
- Navigation arrows and turn instructions
- Distance to the next junction or destination
- Adaptive cruise-control status
- Lane-departure and lane-keeping alerts
- Forward-collision warnings
- Battery state of charge
- Estimated electric driving range
- Regenerative-braking information
- Charging-stop guidance
- Power-consumption information
- Important vehicle-system warnings
The most effective HUD does not try to show every piece of available vehicle data. Instead, it presents the information that is most useful for the driver at that specific moment.
A HUD uses an image source, optical components and a reflective surface to create a visible image in front of the driver.
In many vehicles, the projected image is reflected from the windscreen. In other systems, the image appears on a small transparent panel positioned above the dashboard. The driver sees the information as a virtual image, meaning it appears to be positioned further ahead than the physical display unit.
This helps reduce the need for drivers to switch their focus between the road and the instrument cluster.
| Component | Function |
|---|---|
| Image source | Produces symbols, text, numbers, maps and warning graphics |
| Projection unit | Sends the image through the HUD optical system |
| Mirrors and lenses | Focus and position the image for the driver |
| Windscreen or combiner screen | Reflects the image toward the driver’s eyes |
| Vehicle control unit | Provides real-time data from the vehicle systems |
| Ambient-light sensor | Adjusts brightness for daylight, tunnels and night driving |
| Navigation system | Supplies route, turn and lane guidance information |
| ADAS system | Delivers relevant safety and driver-assistance alerts |
A well-calibrated HUD should remain clear in a variety of conditions, including bright daylight, low-angle sunlight, night driving, rain and changing road environments.
The HUD does not simply place a screen on the windscreen. It uses optics to make the content appear at a comfortable visual distance.
For example, the speed display may appear to float several metres in front of the vehicle. This creates a more natural viewing experience because the driver does not need to constantly shift focus between a nearby dashboard and the distant road.
The actual viewing experience depends on several factors:
- Driver seating position
- Driver height
- Steering-wheel adjustment
- Windscreen angle
- HUD calibration
- Ambient light
- Optical quality of the windscreen
- Vehicle vibration
- Use of prescription or polarised sunglasses

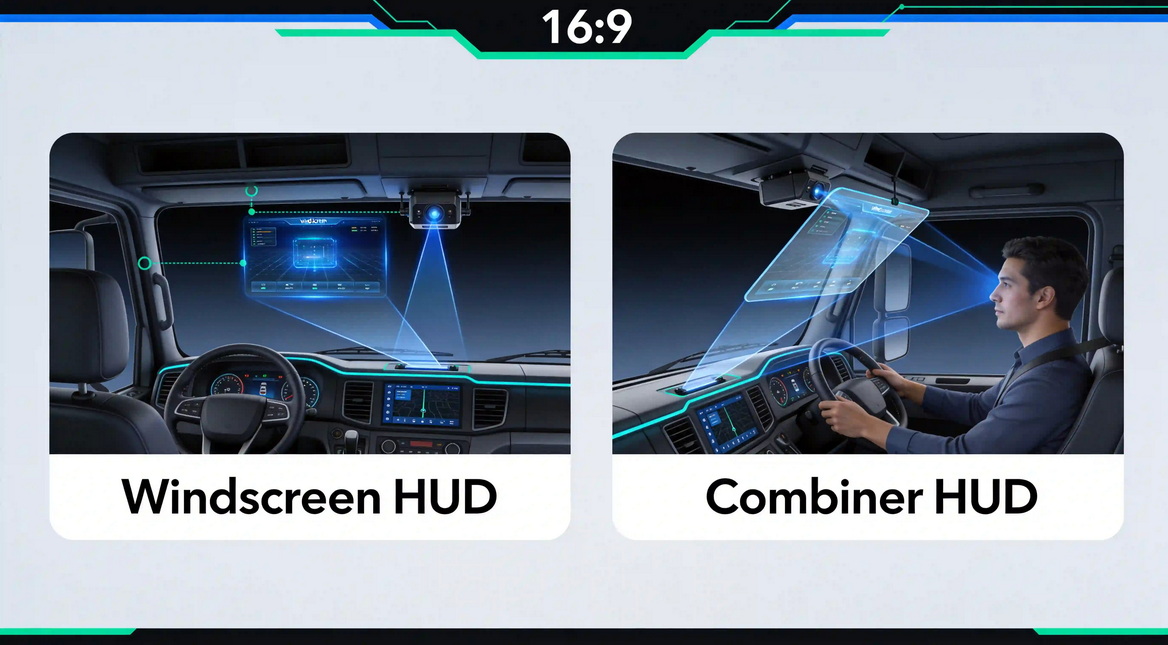

Commercial vehicle buyers may encounter two main types of head-up display systems: windscreen HUDs and combiner HUDs.
A windscreen HUD projects information directly onto a dedicated area of the front windscreen. It is usually the more integrated and premium option.
Common benefits include:
- A larger viewing area
- A more refined cockpit appearance
- Greater suitability for navigation guidance
- Better potential for advanced driver-assistance visuals
- No physical transparent screen rising from the dashboard
- Strong compatibility with high-spec electric coaches and intelligent trucks
A windscreen HUD may require specially designed laminated glass to prevent double images or optical ghosting. It also requires careful engineering during vehicle development.
A combiner HUD projects information onto a small transparent panel positioned above the dashboard.
Common benefits include:
- Lower system complexity
- Easier adaptation for different vehicle platforms
- Practical installation for selected applications
- Potentially lower integration cost
- Suitable for vehicles without HUD-specific windscreens
However, the transparent panel remains visible within the cockpit. It can have a smaller display area than a windscreen HUD and may feel less integrated in premium commercial vehicle interiors.
| Feature | Windscreen HUD | Combiner HUD |
|---|---|---|
| Display surface | Front windscreen | Transparent dashboard-mounted panel |
| Visual integration | High | Moderate |
| Display area | Usually larger | Usually smaller |
| Cockpit appearance | Clean and premium | More visible hardware |
| Integration complexity | Higher | Lower |
| Suitable applications | Advanced buses, coaches and trucks | Selected vehicle platforms and retrofit-style solutions |
| Windshield requirements | May require compatible laminated glass | Usually less dependent on specialised glass |
Commercial vehicle drivers work in a more demanding operating environment than many private-car drivers. They often drive for longer shifts, manage larger blind spots, carry passengers or high-value cargo, navigate complex urban roads and operate vehicles with longer braking distances.
Electric buses and electric trucks add further operational considerations, including battery range, charging schedules, energy recovery and route efficiency.
A HUD can help present selected information closer to the driver's normal forward viewing direction.
Long-distance coach and truck drivers need to monitor speed, navigation and driver-assistance systems throughout their journey. Repeatedly looking down at the dashboard can interrupt the driver's visual scan of the road.
A properly designed HUD can make key information easier to access during highway driving, especially when it is limited to essential data such as:
- Current speed
- Speed limit
- Cruise-control setting
- Following-distance information
- Navigation prompts
- Lane guidance
- Selected safety warnings
The goal is not to keep the driver staring at the HUD. The goal is to reduce the time needed to verify critical information.
City buses operate in frequent stop-and-go traffic, pedestrian-heavy areas, crowded terminals and narrow streets. Drivers may need to monitor traffic signals, road users, buses entering or leaving stops, door conditions and route directions.
A HUD can support urban operation by displaying concise and timely information, such as:
- Speed
- Route-turn guidance
- Lane-departure alerts
- Door-open status before vehicle movement
- Forward-collision warnings
- Energy-saving driving feedback
- Remaining battery range when necessary
For urban driving, the display should remain especially clean. Pedestrians, bicycles, scooters, public transport stops and traffic signals require the driver's full external attention.
Heavy trucks require careful speed control, anticipation and route planning. The driver must account for vehicle mass, load condition, braking distance, road gradient and traffic flow.
Useful HUD content for heavy-duty trucks may include:
- Current speed and speed limit
- Adaptive cruise-control setting
- Distance warning indicators
- Navigation arrows
- Lane guidance
- Hill-descent or gradient information
- Powertrain status
- Fuel or battery efficiency feedback
- Range information for electric trucks
- Critical system warnings
In an electric heavy truck, the HUD can also support route-aware energy management. It may help the driver understand when upcoming gradients, traffic conditions or charging locations affect the vehicle's expected range.
New energy vehicles often have more digital systems than conventional vehicles. Electric buses, electric coaches and electric trucks may include battery-management systems, regenerative braking, digital dashboards, telematics platforms, advanced driver-assistance systems and route-based energy planning tools.
A HUD can provide a focused visual layer within this broader intelligent cockpit.
Battery information is important, but it should not dominate the driver's attention at all times. A well-designed HUD may show selected range-related information only when it becomes operationally meaningful.
For example, the system may provide a prompt when:
- Battery reserve falls below a defined level
- The predicted arrival battery level is too low
- A scheduled charging point is approaching
- Energy use is higher than expected
- The vehicle enters a route segment with significant uphill demand
- A battery or high-voltage warning requires attention
This approach keeps the display useful without turning it into a permanent data dashboard.
Regenerative braking allows many electric vehicles to recover energy during deceleration. For bus and truck drivers, simple feedback can help explain how driving behaviour affects energy efficiency.
The HUD may display:
- Regenerative-braking activity
- Energy recovery level
- Eco-driving indicator
- Recommended deceleration behaviour
- Selected drive mode
- Power demand during acceleration
This information should be secondary to road safety. It is most useful when presented in a simple and non-intrusive format.
Electric commercial vehicles depend on reliable charging planning. For long-distance electric coaches and heavy trucks, route guidance may need to consider charging station availability, expected arrival state of charge, charging duration and operational schedules.
A HUD can show short navigation cues related to charging, including:
- Distance to the next charging location
- Recommended exit or lane guidance
- Charging-stop confirmation
- Arrival range estimate
- Priority charging alerts
Detailed charging information should remain available on the central display or fleet platform, where drivers and operators can review it safely when parked.
A HUD can become more valuable when connected with advanced driver-assistance systems.
These systems may include:
- Adaptive cruise control
- Automatic emergency braking
- Forward-collision warning
- Lane-departure warning
- Lane-keeping assistance
- Blind-spot detection
- Traffic-sign recognition
- Driver-monitoring systems
- Intelligent speed assistance
- Parking and low-speed manoeuvring support
The HUD can help communicate important system status and warnings in a location closer to the driver's forward view.
Not all messages deserve the same visual treatment. A navigation arrow should not look like a collision warning, and a routine battery reminder should not appear with the same urgency as a critical system alert.
A practical HUD interface should distinguish between four levels of information:
| Information Type | Example | Recommended Display Style |
|---|---|---|
| Status information | Cruise control active | Small, stable icon |
| Driving guidance | Navigation turn arrow | Clear directional prompt |
| Advisory message | Reduced battery reserve | Noticeable but non-alarming prompt |
| Urgent warning | Forward-collision warning | High-contrast visual alert with supporting warning cues |
Drivers should understand the priority of a message immediately, without reading long sentences or interpreting complicated menus.
More technology does not always create a better driving experience. A crowded HUD can distract the driver, block the road scene or create unnecessary stress.
The best commercial-vehicle HUD design follows several practical rules:
- Keep permanent information limited
- Use large, high-contrast symbols
- Avoid excessive animation
- Show detailed data only when necessary
- Use consistent icon meanings
- Prioritise warnings clearly
- Minimise long text messages
- Allow brightness adjustment
- Support driver-specific positioning where possible
- Maintain consistency with the digital instrument cluster
A HUD can provide important benefits for vehicle manufacturers, fleet operators and professional drivers.
Drivers can check key information with less need to look down at the dashboard. This may be particularly useful for speed monitoring, navigation prompts and driver-assistance feedback.
HUD technology complements digital instrument clusters, large central displays, telematics systems and connected-vehicle functions. Together, these features can create a more modern and premium commercial-vehicle cabin.
Navigation guidance is especially valuable for buses and trucks operating in unfamiliar urban areas, freight terminals, industrial parks, ports, border crossings and long-distance logistics routes.
The HUD can display turn arrows, lane instructions and distance-to-turn information at the point where the driver needs it most.
For electric buses and trucks, drivers can access selected battery, range and regenerative-braking information without constantly searching through display menus.
This can support more confident operation of new energy commercial vehicles, especially when combined with route-based energy planning.
For vehicle suppliers and exporters, advanced HUD technology can increase the perceived value of a bus, coach or truck. It demonstrates attention to driver comfort, digital integration, safety-system communication and future-oriented vehicle design.
A HUD can be useful, but it must be evaluated realistically. It is not automatically beneficial simply because it is technologically advanced.
The driver remains responsible for observing the road, checking mirrors, monitoring traffic, recognising hazards and operating the vehicle safely.
A HUD should support driving awareness, not encourage overconfidence. It cannot replace proper driver training, safe operating practices or attention to the surrounding environment.
HUD visibility may be influenced by:
- Direct sunlight
- Low-angle sunlight at dawn or sunset
- Rain, snow or windscreen dirt
- Poor windscreen quality
- Improper display calibration
- Vehicle vibration
- Reflections inside the cabin
- Polarised sunglasses
- Driver seating position
Vehicles should be tested in realistic conditions rather than evaluated only in a showroom or product presentation.
Ghosting occurs when the driver sees a double image rather than one clear projected image. This can happen if the windscreen, projection system or optical alignment is not properly designed.
For high-quality windscreen HUD applications, compatible laminated glass and accurate calibration are important. Commercial vehicles also need to manage vibration, because cabin and road movement can affect display stability.
Drivers vary in height, posture and preferred seating position. If the HUD cannot be adjusted correctly, some drivers may find the display partly obscured, too high, too low or difficult to read.
A good commercial-vehicle HUD should support practical adjustment through seat, steering-wheel and HUD-position settings.
Fleet managers, distributors and procurement teams should look beyond the presence of a HUD feature. The key question is whether it improves usability in real operating conditions.
Different applications need different information priorities.
| Vehicle Application | HUD Priorities |
|---|---|
| Long-distance electric coach | Speed, navigation, range, charging guidance, driver-assistance status |
| Urban electric bus | Speed, route guidance, collision alerts, door status, energy-saving prompts |
| Logistics truck | Speed, navigation, following distance, lane guidance, powertrain information |
| Heavy-duty electric truck | Speed, battery range, grade information, charging guidance, safety warnings |
| Tourist coach | Speed, navigation, driver-assistance status, comfort-focused cockpit design |
| Industrial transport vehicle | Speed, low-speed warning support, route or site guidance, vehicle-system alerts |
A practical evaluation should include:
1. Daylight visibility testing
2. Night-driving brightness testing
3. Low-sun and reflection testing
4. Rough-road vibration testing
5. Different driver-height testing
6. Polarised-sunglasses testing
7. ADAS-warning timing testing
8. Navigation-readability testing
9. Battery and range-alert testing
10. Driver feedback after extended operation
The HUD should work consistently with the vehicle's other digital systems.
Important integration points include:
- Digital instrument cluster
- Battery-management system
- Advanced driver-assistance system
- Navigation platform
- Telematics system
- Camera and radar systems
- Vehicle control unit
- Fleet-management platform
Conflicting data between the HUD, dashboard and central display can reduce driver confidence. Information should be consistent, current and easy to understand.
Drivers who operate buses and heavy trucks every day can identify usability problems quickly. Their feedback is particularly useful for evaluating:
- Display readability
- Alert timing
- Icon clarity
- Brightness adjustment
- Route guidance
- Driver fatigue
- Seating-position compatibility
- Unnecessary visual distraction
A fleet pilot programme can help identify issues before a full vehicle rollout.
A head-up display is an intelligent cockpit technology that projects selected vehicle information into the driver's forward view. In passenger buses, electric coaches, heavy trucks and new energy vehicles, it can support faster access to speed, navigation, safety alerts and energy-related information.
The most successful HUD systems are simple, clear and context-aware. They do not overwhelm drivers with every available data point. Instead, they prioritise the information that supports safe and efficient vehicle operation.
For electric buses and heavy-duty trucks, HUD technology can be especially valuable when integrated with battery management, regenerative braking, charging navigation, telematics and advanced driver-assistance systems.
For KeyChain, high-quality HUD-equipped buses, coaches and heavy trucks represent more than a premium cabin feature. They form part of a complete intelligent-vehicle solution that can support driver comfort, operational visibility, electric-vehicle confidence and modern fleet requirements.
KeyChain provides high-performance new energy buses, electric coaches, heavy-duty trucks and intelligent vehicle solutions for domestic and international markets. Vehicle specifications, cockpit configurations and technical features can be tailored to meet different transport, fleet and export requirements.
HUD means head-up display. It is a system that projects selected driving information into the driver's forward view, usually on the windscreen or a transparent display panel.
A HUD can display speed, navigation instructions, speed limits, cruise-control settings, driver-assistance alerts, battery state of charge, estimated electric range, regenerative-braking information and charging-related guidance.
Yes. A HUD can help electric bus drivers access important information such as speed, navigation and selected battery or range alerts. It is most useful when the display remains simple and prioritises driving-critical information.
A HUD can improve the driving experience by making speed, navigation, following-distance information and selected safety alerts easier to check. For electric heavy trucks, it can also support route-aware range and charging information.
A windscreen HUD projects information onto the front windscreen and generally offers a more integrated visual experience. A combiner HUD projects information onto a small transparent panel above the dashboard and can be easier to adapt to some vehicle platforms.
1. Evans Halshaw. "[What is a Head-Up Display (HUD)?]"
2. National Highway Traffic Safety Administration. "[Visual-Manual NHTSA Driver Distraction Guidelines for In-Vehicle Electronic Devices]"
3. National Highway Traffic Safety Administration. "[Put the Phone Away or Pay]"
4. National Transportation Library, U.S. Department of Transportation. "[Head-Up Displays and Distraction Potential]"
5. PubMed. "[Head-Up Displays and Their Automotive Application: An Overview of Human Factors Issues Affecting Safety]"
6. SAE International. "[Challenges in Head-Up Display Design for Modern Connected Vehicles]"
7. MarketsandMarkets. "[Automotive HUD Market Report 2026–2033]"
